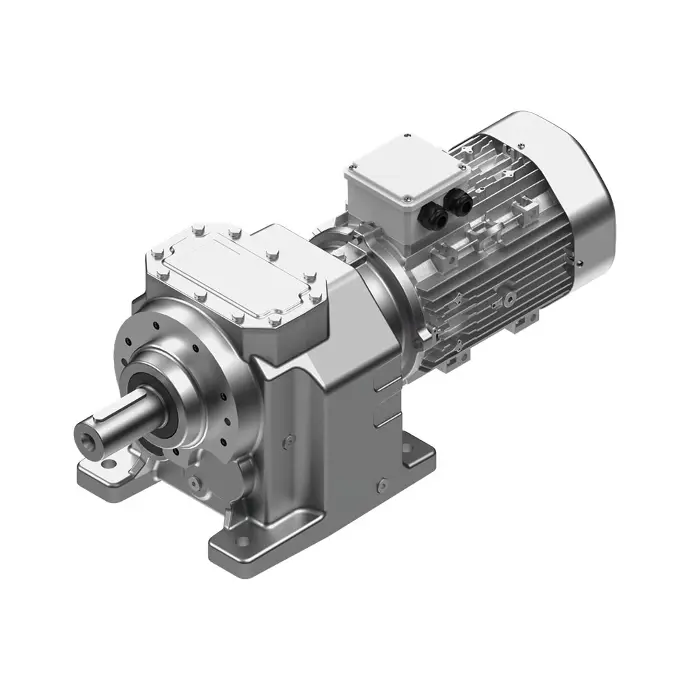

Helical Gear Reducers
A/F Series
With its compact body and easy installation advantages, the A/F series offers services with a maximum torque of up to 8600 Nm.
- Helical gear reducers with coaxial input and output.
- There are body options available for both foot-mounted and flange-mounted connections.
- The body has a rigid structure.
- It can be provided with a shaft output.
- The system strength calculations are performed in accordance with ISO, DIN, and NIEMANN standards.
- Various input options are available (Motor-coupled, IEC, PAM, W, Servo motor-connected, ...)
- Bodies can be manufactured in spheroidal (GGG 40-50) and cast iron (GG 20-25) materials.
- Gears are manufactured from forged and 21NiCrMo2 carburizing steel.
- High-quality bearings and sealing elements are used.
- Customer's specific requests can be accommodated.

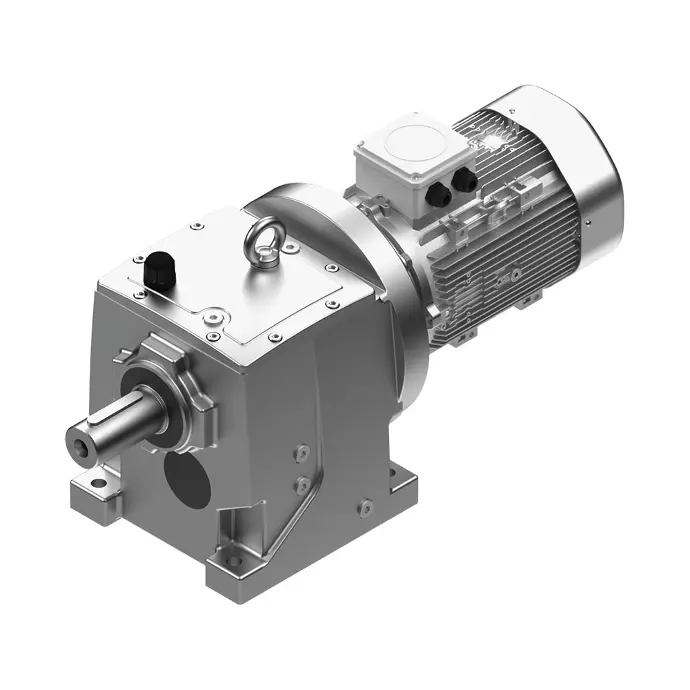

Helical Gear Reducers
PA/PF Series
Drive systems requiring a wide range of torque and a maximum output torque of 26,900 Nm are offered with foot-mounted (PA) and flange-mounted (PF) connection options.
- These are helical gear reducers with parallel input and output shafts.
- There are body options available for both foot-mounted and flange-mounted connections.
- The body has a rigid structure.
- The system strength calculations are performed in accordance with ISO, DIN, and NIEMANN standards.
- Various input options are available (Motor-coupled, IEC, PAM, W, Servo motor-connected, ...)
- Different flange dimensions can be provided for B5 connections.
- Bodies can be manufactured in spheroidal (GGG 40-50) and cast iron (GG 20-25) materials.
- Gears are manufactured from forged and 21NiCrMo2 carburizing steel.
- High-quality bearings and sealing elements are used.
- Customer's specific requests can be accommodated.
