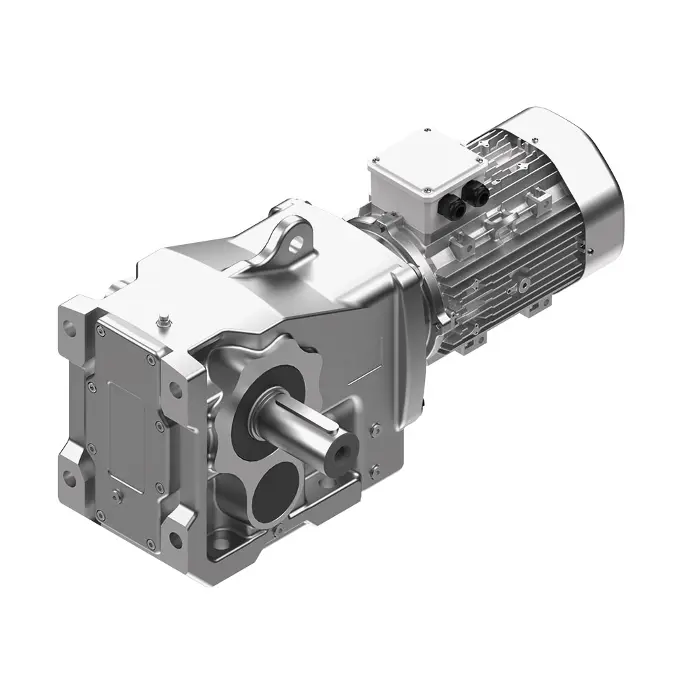

Spiral Bevel Gear Reducers.
PKD Series
In cases where the movement needs to be redirected by 90°, it serves as a solution in various conveyors used for heavy load transfer as a drive system.
- These are helical and bevel gear reducers with a 90° angle between the input and output axes.
- There are options for both foot-mounted and flange-mounted body connections.
- The body has a rigid structure.
- The system strength calculations are performed in accordance with ISO, DIN, and NIEMANN standards.
- Various input options are available (Motor-coupled, IEC, PAM, W, Servo motor-connected, ...)
- Different output options are available (shaft output, keyed shaft, tapered shaft, etc.).
- Various connection accessories are available (B5 flanged, B14 flanged, torque arms, platforms, etc.).
- Bodies can be manufactured in ductile iron (GGG 40-50) and cast iron (GG 20-25).
- Gears are manufactured from forged and 21NiCrMo2 case-hardening steel.
- High-quality bearings and sealing elements are used.
- Customer's special requests can be accommodated.
